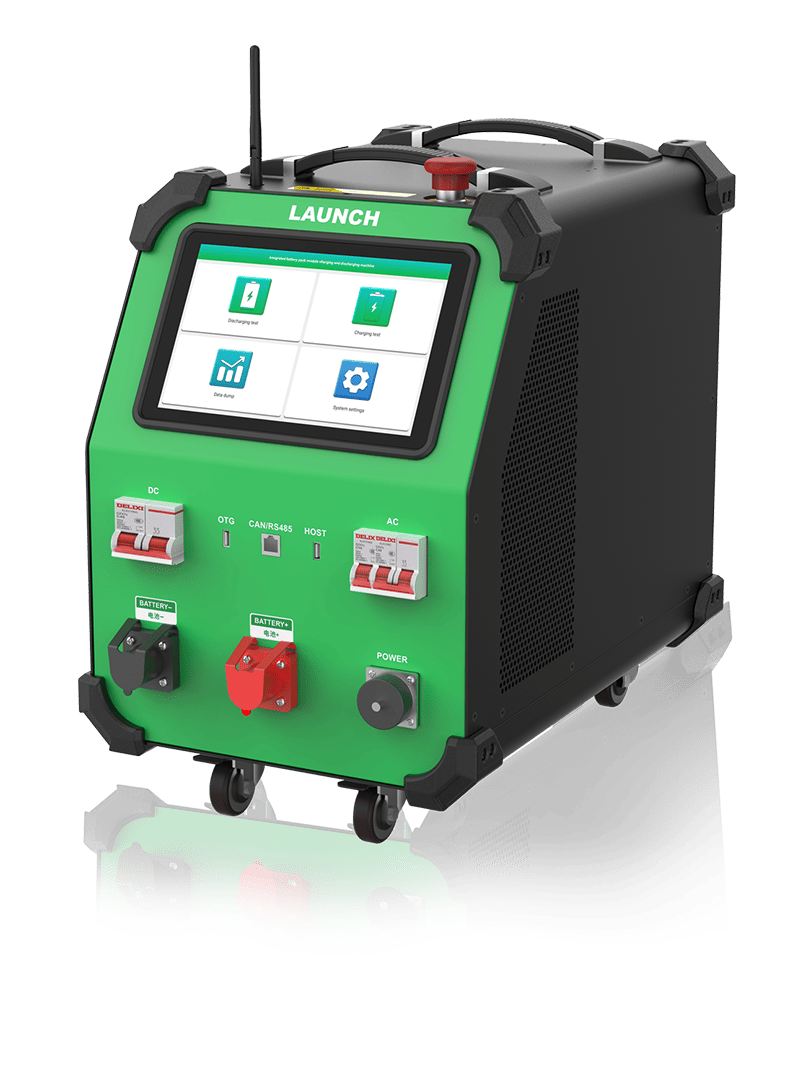

EVP711
EVP711
BATTERY MODULE CHARGER AND DISCHARGER
With our new EVP711, it is possible to carry out maintenance on lithium-ion and nickel-metal hydride
nickel-metal hydride batteries, with a focus on lithium batteries. The EVP711 offers SOC/SOH measurements, a wide voltage range and multiple charge/discharge modes for increased safety and efficiency. Key safety features include protection against overvoltage, overcurrent, overheating, etc. Real-time monitoring and adjustable protection thresholds ensure optimum battery life.
SUPPORT FOR THE MAINTENANCE OF LITHIUM AND NICKEL-METAL HYDRIDE BATTERIES
WIDE VOLTAGE RANGE AND CHARGE/DISCHARGE MODES ENSURE SAFETY AND EFFICIENCY
SOC/SOH FOR THE EVALUATION OF THE BATTERY MODULE STATUS
SAFETY FEATURES: REVERSE POLARITY, OVERHEATING, SHORT-CIRCUIT, FAN FAILURE PROTECTION AND MORE
THE SYSTEM COLLECTS REAL-TIME DATA ON MODULE AND CELL VOLTAGE
THE SYSTEM PREVENTS OVERCHARGING AND DEEP DISCHARGING OF THE BATTERY
User-defined operating parameters
You can set your own charging and discharging rules and activation times to achieve optimum battery capacity.
Alarm settings
Various alarm conditions can be set for voltage, current and temperature. This enables early intervention and ensures the safety of the battery and device.
Monitoring of maximum and minimum voltage
The device offers the option of displaying the highest and lowest voltages, temperatures and other data of individual battery strings, which can be enlarged or reduced in size for a better overview.
Security features
The EVP711 is equipped with a range of safety functions, including reverse polarity protection, overtemperature protection, overcurrent protection, fan failure detection, overvoltage warning and overcurrent warning. All of these functions contribute significantly to the safety of the operator.
The new EVP711 is designed to support the charging and discharging of lithium and nickel-metal hydride batteries.
The new EVP711 is capable of recording and displaying real-time data on the terminal voltage of the battery pack and the voltage of the individual cells.
BATTERY MODULE CHARGER AND DISCHARGER
Professional charger and discharger
Technical Profile
Charging and discharging power
Charging: max. 4.4kW
Discharging: max. 7.2kW
Battery interface
16 Pin, 24 Pin
Channels
HV-positive and HV-negative
Display
10″ LCD Display
Communication
WLAN, Bluetooth
