Automatic Transmission Flushing Unit

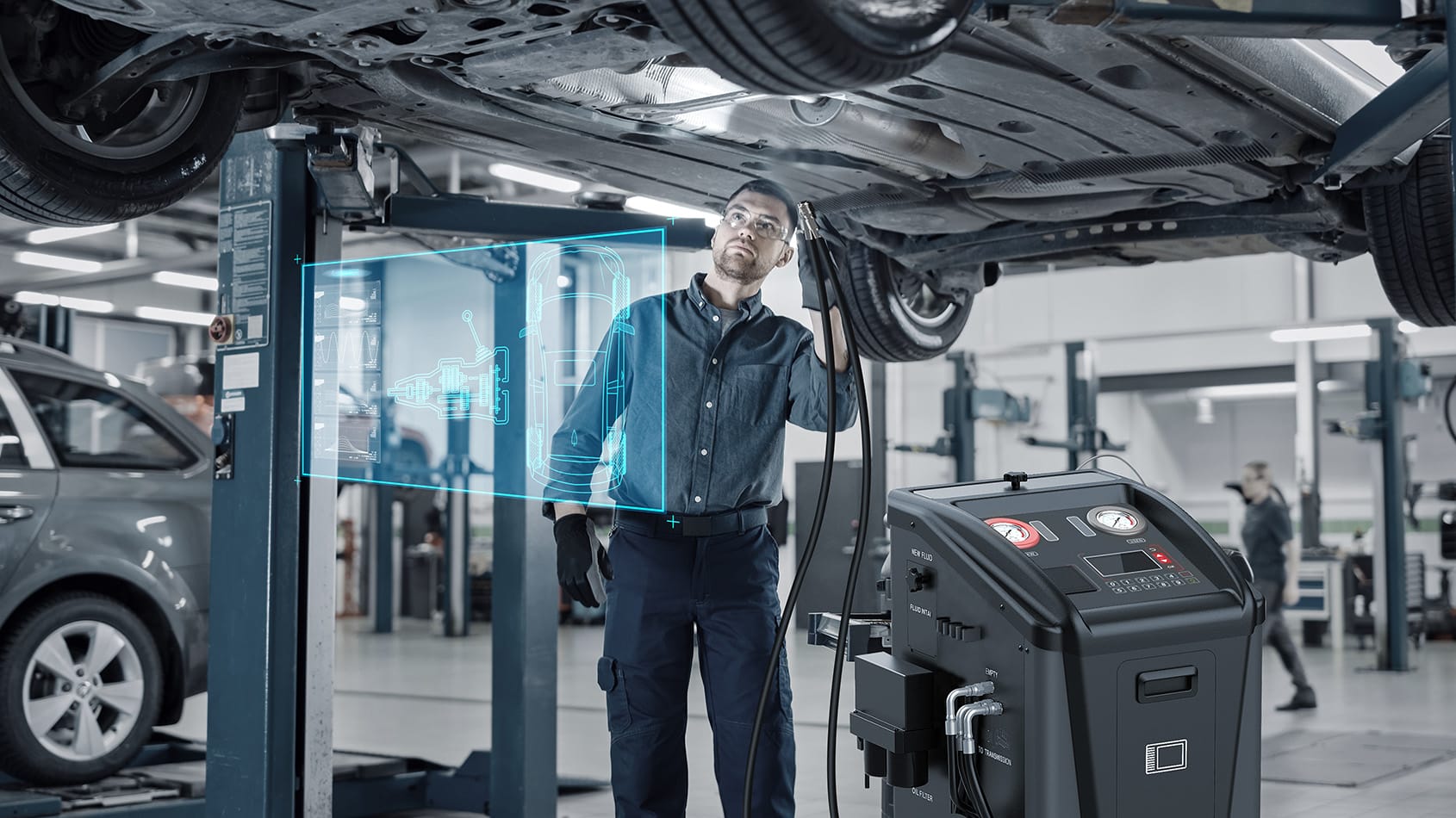

The CAT-601S CleanGEAR from LAUNCH is an automatic transmission flusher and fluid exchanger that enables quick and easy cleaning and re-oiling of transmissions. The unit can be supplied with a comprehensive range of optional ATF (Automatic Transmission Fluid) adapters that allow connection to most transmission units, including dual clutch and CVT types. It can also be connected to a LAUNCH X-431 diagnostic device using the optional CAT app to remotely control the main functions of the system.

The ATF database of the CAT-601S contains numerous vehicle data and the corresponding transmission data. The corresponding fluid quantities are automatically transferred from the database after the vehicle is selected and the transmission flushing process can be started. It is also possible to set the fluid quantities manually.

All parameters for the transmission flush can be set via the integrated screen and the operating buttons. The integrated pressure gauge displays provide information on the progress of the transmission flushing process. Thanks to the integrated thermal printer, the process can be documented directly afterwards and made available to the customer. This makes working with the new CAT-601S particularly intuitive and easy.

The ATF database of the CAT-601S contains numerous vehicle data and the corresponding transmission data. The corresponding fluid quantities are automatically transferred from the database after the vehicle is selected and the transmission flushing process can be started. It is also possible to set the fluid quantities manually.

All parameters for the transmission flush can be set via the integrated screen and the operating buttons. The integrated pressure gauge displays provide information on the progress of the transmission flushing process. Thanks to the integrated thermal printer, the process can be documented directly afterwards and made available to the customer. This makes working with the new CAT-601S particularly intuitive and easy.

CAT App Activation Card

The CAT-601S CleanGEAR can also be controlled via an X-431 diagnostic device using the CAT app.

CAT App advantages:

Thanks to the CAT app, the gearbox flushing device can now be controlled remotely and the flushing process can be carried out by just one person instead of two, saving time and money.

By using the CAT app, our LAUNCH service team can provide fast and effective support. The remote app gives our service team access to the diagnostic device via TeamViewer during the service process to help customers with any queries regarding the operation of the CAT-601S CleanGEAR.

Please be aware that we can only provide guidance on operating the CAT via TeamViewer and assist with the device’s operation. Ultimately, we are unable to visually confirm, via TeamViewer, whether everything has been connected correctly on the vehicle.

CAT App Activation Card

The CAT-601S CleanGEAR can also be controlled via an X-431 diagnostic device using the CAT app.

CAT App advantages:

Thanks to the CAT app, the gearbox flushing device can now be controlled remotely and the flushing process can be carried out by just one person instead of two, saving time and money.

By using the CAT app, our LAUNCH service team can provide fast and effective support. The remote app gives our service team access to the diagnostic device via TeamViewer during the service process to help customers with any queries regarding the operation of the CAT-601S CleanGEAR.

Please be aware that we can only provide guidance on operating the CAT via TeamViewer and assist with the device’s operation. Ultimately, we are unable to visually confirm, via TeamViewer, whether everything has been connected correctly on the vehicle.

ATF Adapter Package I-VII

In addition to the standard adapter case included in the scope of delivery, there are other optional ATF adapters available for the CAT-601S CleanGEAR.


Our ATF adapter packages I – VII contain different valves, plug-in connections, adapter hoses and special components to enable professional connection to the different gearbox types and models.

ATF Adapter Package I-VII

In addition to the standard adapter case included in the scope of delivery, there are other optional ATF adapters available for the CAT-601S CleanGEAR.


Our ATF adapter packages I – VII contain different valves, plug-in connections, adapter hoses and special components to enable professional connection to the different gearbox types and models.

Advantages of the automatic
transmission flushing device

Transmission oil change with precision
The CAT-601S from LAUNCH enables the transmission fluid to be changed precisely with the aid of integrated weight and volume determination. The technician is guided step-by-step through the programme of the CAT-601S CleanGEAR programme.
Oil sample easily possible
A small amount of oil can be defined and removed as a sample using an outlet valve on the side. This allows the technician to check the quality of the transmission oil before and after the flushing process.
ATF Database
The optionally available ATF database contains all important information on vehicles, transmission specifications and adaptation points and provides optimum support for the technician when working with the CAT-601S CleanGEAR.
CAT app / remote control
The CAT app in the software of the LAUNCH X-431 product series can be used to remotely control the main process sequences via the diagnostic device. In this way, a technician can also carry out a complete gearbox flushing process alone.
Numerous optional adapter packages
The CAT-601S can be supplied with a comprehensive range of optional adaptors that allow connection to most transmissions, including dual clutch and CVT transmissions.
Cleaning with cleaning agent

A suitable cleaning agent is also required to clean the gearbox, which must be poured into the CAT-601S before the gearbox flushing process. The vehicle engine should then be started and left running for about 10 minutes. During this time, the gears of the transmission should be shifted several times.

Power Supply

AC 110 V / AC 220 V

50 Hz / 60 Hz

Max. Power

150 W

Equivalent Exchange

Error


± 100 ml

Pump Efficiency

2 l / min

Detergent Tank Volume

20 l

Temperature Sensitivity

± 100 °C

Filter Precision

5 μm

Noise

70 dB (A)

Ambient Temperature

-10 – 50 °C



Relative Humidity

<85%

Dimensions

590 x 700 x 1.037 mm

Display

5“
